CPU Cluster Barnard¶
Overview¶
The HPC system Barnard is a general purpose cluster based on Intel Sapphire Rapids CPUs. Its
introduction in 2023 marked the beginning of the current structure of the HPC systems as several
homogeneous clusters. Therefore, it features its own Slurm batch system and own login
nodes.
Hardware Details¶
A brief overview of the hardware specification is documented on the page HPC Resources.
Processor
- 2 x Intel Xeon Platinum 8470 (52 cores) @ 2.00 GHz (Datasheet), Multithreading available
- Login nodes: 2 NUMA domains, one on each socket
- Compute nodes: 8 NUMA domains, 4 on each socket
System Memory
Barnard login nodes feature larger DIMMs than the compute nodes, at 64 GiB versus 32 GiB.
Therefore, the total capacity changes from 1024 GiB to 512 GiB per compute node. The compute
nodes' DIMMs have the part No. MTC20F2085S1RC48BA1 (product page).
All other aspects remain identical:
- 2 sockets with 8 memory channels each
- 1 DDR5-4800 SECDED ECC-RDIMM per channel, 16 DIMMs total
- Theoretical peak bandwidth across both sockets: 614.4 GB/s
Local Storage
Barnard nodes with a local SSD (n16[07-15, 28-30]) can be identified by the feature
flag local_disk in the output of the command sinfo -o "%N %b". Adding
--constraint=local_disk to an sbatch, srun or salloc invocation allows to select them.
The full disk is available in /tmp, formatted to the ext4 filesystem. Physically, it
resembles a 1920 GB Micron 7450 PRO M.2 22110 SSD (Part No. MTFDKBG1T9TFR, product page,
datasheet).
The devices use PCIe 3.0 x4, despite being capable of PCIe 4.0 x4, limiting the available
read bandwidth.
The login nodes have access to a local 1600 GB Micron 7300 MAX U.2 SSD (Part No.
MTFDHBE1T6TDG, archived datasheet).
A partition formatted to xfs is mounted in /tmp.
All other nodes only have 2 GiB of the main memory mounted, theoretically providing memory
bandwidth as a filesystem. As /dev/shm works identically and provides up to 50% of the memory
capacity as a RAM disk, use it instead.
| Node Type | Disk Type | Usable Capacity | Sequential read/write | Random read/write |
|---|---|---|---|---|
| Disk Node | NVMe SSD | 1.8 TiB | <3.9/2.4 GB/s | 735/120 kIOPS |
| Login Node | NVMe SSD | 1.5 TiB | 3.0/1.9 GB/s | 396/100 kIOPS |
| Regular Node | RAM | 2 GiB | - | - |
See also: Node-Local Storage in Jobs
Networking
Both Barnard login nodes and compute nodes feature a Mellanox ConnectX-6 InfiniBand device
(user manual)
for networking. However, login nodes operate at 4xHDR (200 Gb/s, 25 GB/s), while compute nodes
operate at 2xHDR (100 Gb/s, 12.5 GB/s).
System Architecture
The system is based on BullSequana XH2000 servers which integrate Gigabyte R283-S91-AAE1 servers (product page, user manual).

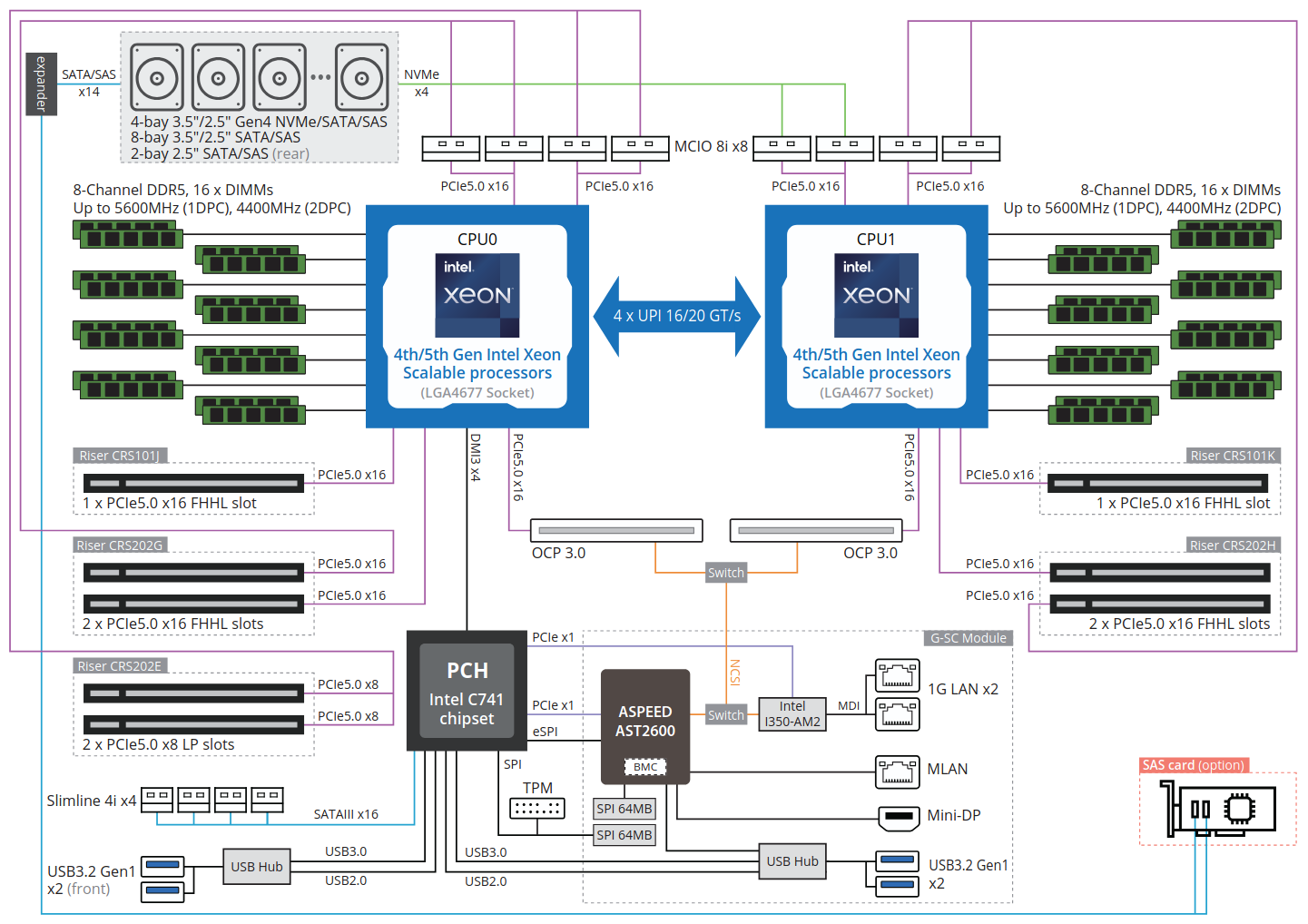

System architecture:
Architecture output of hwloc-ls:
Operating System
Barnard runs Red Hat Enterprise Linux version 9.6.
Login Nodes¶
Use login[1-4].barnard.hpc.tu-dresden.de to access the cluster Barnard from the campus (or VPN)
network. In order to verify the SSH fingerprints of the login nodes, please refer to the page
Key Fingerprints.
On the login nodes, you have access to the same filesystems and software stack as on the compute nodes. Please note that a 32 GiB memory limit per user is in place.
Filesystems¶
The shared filesystems horse and walrus are mounted on Barnard. Data from other filesystems
may be accessed via the Datamover.
